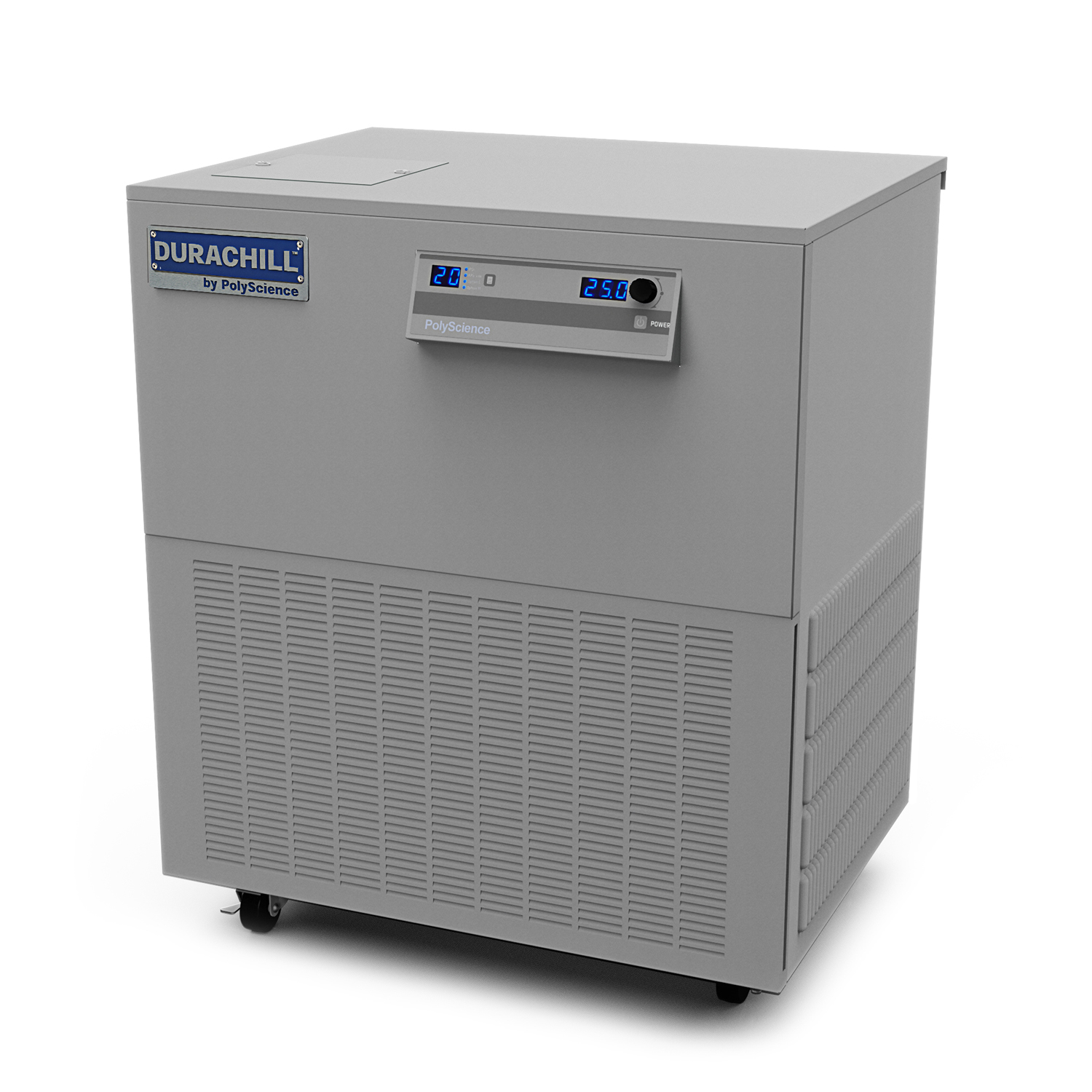

DuraChill 2 and 3 HP Portable Industrial Chillers
These air- and water-cooled chillers provide high capacity cooling for lasers, EDM equipment, injection molding, and other heat removal applications.
• Process Temperature: 5° to 35°C (41° to 95°F)
• Ambient Temperature: 16° to 35°C (68° to 95°F)
• Temperature Stability: ±0.5°C
• Cooling Capacity @ 20°C:
- 7000 to 10,936 watts
- 23,870 to 37,292 BTU/hour
• Available Pump Types:
- Centrifugal (standard)
- Turbine (optional)
• Compressor HP:
- 2.0 (2 HP chiller)
- 3.0 (3 HP chiller)
• Pump Pressure: 25 PSI
• Reservoir Capacity: 7.0 gallons
• Temperature Readout: Digital LED
• Pressure/Flowrate Readout: Digital LED
• Alarms: User-settable temperature, pressure, and flowrate
• Dimensions (D x W x H): 30.5 x 37 x 42 inches
• Inlet & Outlet Connections: 3/4 inch NPT
• Options:
- Serial output
- Alarm indicator
- Remote temperature probe
- Remote On/Off
- DI compatible process piping
- Conductivity control
*Cooling capacity based on 20°C entering air and 20°C leaving water. Allowance made for heat gain from pump.
