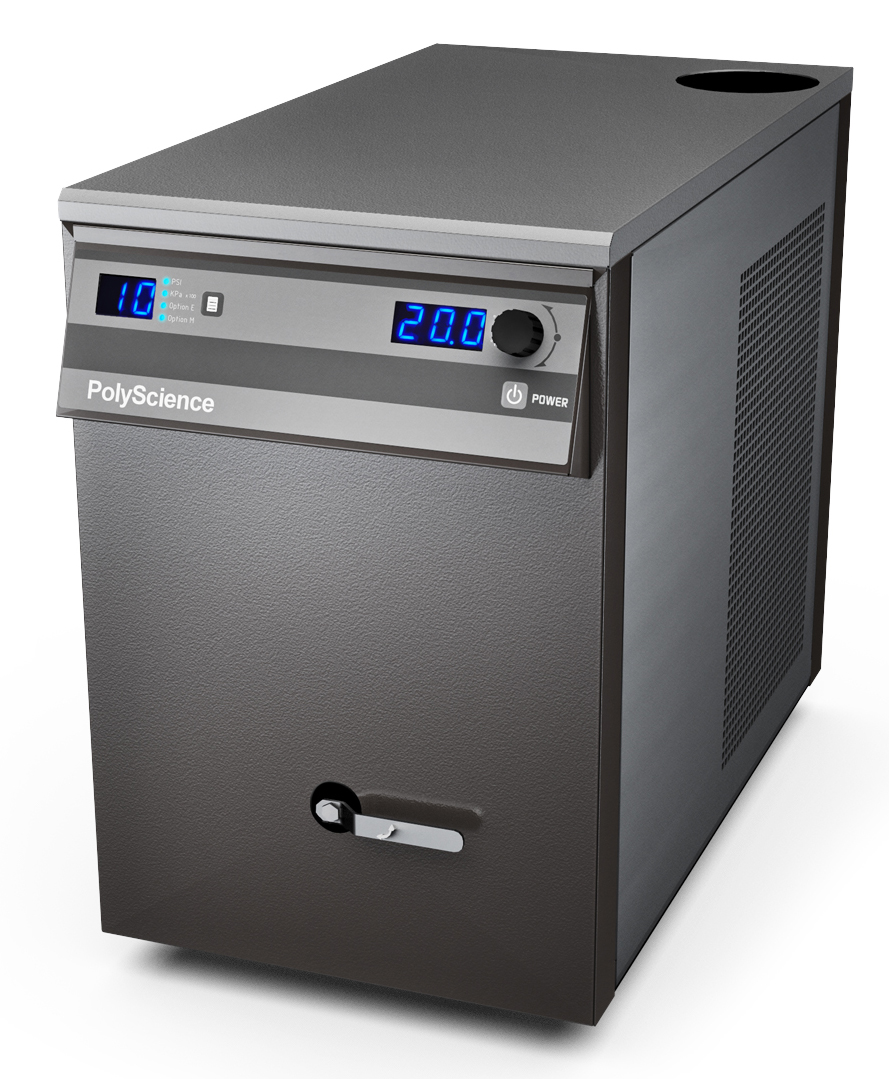

Model 4100 Liquid-to-Liquid Cooler
Protects precision equipment from facility water contaminants
• Working Temperarture Range: Facility water +10° to 60°C
• Temperarture Stability: ±0.4°C
• Cooling Capacity: 10,000 watts based on 10°C delta T (water)
• Pump: Turbine
• Pump Pressure @ 0 Flow: 100 PSI maximum
• Flow Rate @ 0 PSI: 3.5 GPM
• Reservoir Capacity: 1.1 gallons
• Dimensions (L x W x H): 27.6 x 14.5 x 22.6 inches
• Inlet & Outlet Connections: 1/2 inch female NPT
Performance specifications based on ambient temperature of 68°F (20°C).
