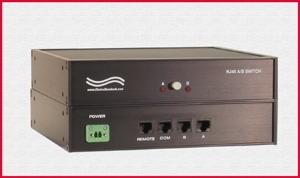

Model 7407 RJ45 A/B Switch
with Remote Port
Half the size of standard 1U rack!
The PathWay® Model 7407 RJ45 A/B Network Switch with Remote control access allows the user to access two separate RJ45 ports via the COMMON port.
Control the Model 7407 network switch manually via a front panel pushbutton or remotely from an RS-232 rear-panel serial port. Switch status may be attained via front-panel LED display or the remote RS-232 serial port.
Features:
Model 7407 RJ45 AB Network Switch with Remote control accesses two separate RJ45 ports via the COMMON port.
Ideal for sharing or fallback applications.
All 8 pins of the RJ45 interface are switched.
Transparent to data speed and protocol.
All switched signals are passed via copper contact relays that maintain their position and continuity in the event of power failure.
Pushbutton control or remote ASCII command access through the Remote serial port.
Front panel LEDs indicate switch position and power status.
Rugged aluminum case provides EMI/RFI shielding.
Specifications:
Connectors:
(3) RJ45 (F) for A, B and COMMON.
(1) RJ45 (F) REMOTE port.
(1) Power jack.
Controls: (1) Manual pushbutton on front panel, or via remote RJ45 (F) serial port.
Display: (2) LEDs on front panel display switch position and power status.
Power: UL approved 115 VAC, 60 Hz wall mount power module.
Dimensions: 8" W x 1.75" H x 8" D.
Weight: Approximately 2.5 lbs.
This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V.
