The QuickSwitch® 6259 16-Channel Fiber Optic ST Simplex A/B/Off-Line Switch

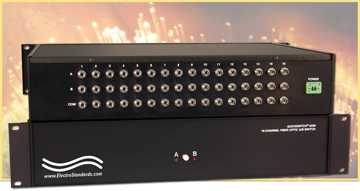

The QuickSwitch® 6259 16-Channel Fiber Optic ST Simplex A/B/Off-Line Switch allows devices connected to COMMON port of each channel access to the A or B port on each channel. All channels are switched simultaneously. The QuickSwitch® 6259 Fiber Optic switch is enclosed in a standard 2U rackmount casing. This 16-channel switch may be controlled locally by manually operating the front panel pushbutton. The front panel LED display indicates all of the switch positions and unit power status.
Features:
All switch control is from the front-panel.
No remote control!
Front panel LED's for display of current position of all channels as well as the power status.
All 16 channels switch simultaneously.
MEMS-based mirror/prism switch technology supports Gigabit data rates.
Bit-rate and data transparent.
Optical data throughput scalability.
All fiber ports are ST simplex, multimode, 62.5/125 micron and support a wavelength of 850 nm.
When power is lost, unit goes off-line and does not pass data.
When power is restored, unit will retain last position.
Specifications:
PORT CONNECTORS: (48) ST female connectors (A group of (3) labeled
A, B, and COMMON for each of the 16 channels).
WAVELENGTH: 850 nm
FRONT PANEL CONTROLS: (1) Manual pushbutton allows local switching.
DISPLAY: (2) Front panel LED's display switch position and power status.
POWER: WIDE RANGE CE and UL listed table mount power module (Cat.No. 988147) 100VAC/240VAC, 50Hz/60Hz supplies 12VDC to the unit. Ideal for international applications.
DIMENSIONS: 19" W x 3.5" H x 12" D (48.3 x 8.9 x 30.5cm)
WEIGHT: 8.5 lbs (3.9 kg)
