DB-15 Female/Two Bantam Plugs, T-1 - Catalog No. 930844-006
High quality cables designed to facilitate test and access of high speed data interfaces.
Use this part number if purchasing separately from Complete Telephone/Telco Test Kit

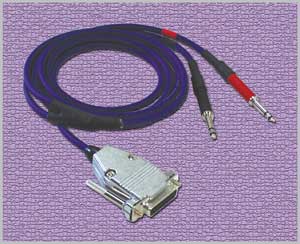

A DB-15 female connector, metal hood with thumbscrews, connected to two miniature 3-conductor nickel phone plugs.
The cable is 26 AWG, shielded, twisted pair with high-flex PVC jacket.
Paired: Pins 1 & 9 to TX Tip & Ring, pins 3 & 11 to RX Tip & Ring.
Standard length is 6 feet.
The TX plug is red.
The RX plug is black.
All ESL products are available for export.
