Model 8443 Dual-Channel RJ45 & BNC A/B Switch, Manual Operation
- Simultaneously Switches 1 Channel RJ45 (Cat 5) & 1 Channel BNC (RG59, 75 ohm)

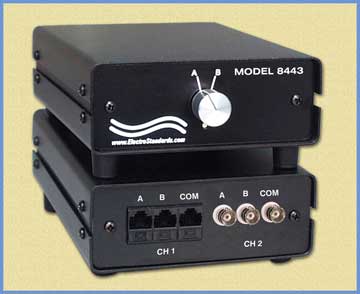

The Model 8443 Dual-Channel RJ45/BNC A/B Switch Enables access to two devices per each of its two channels. Channel 1 allows access to RJ45 devices 1-A or 1-B. Channel 2 allows access to BNC devices 2-A or 2-B. All channels are switched simultaneously The unit supports 8 pins for the RJ45 Cat5 interface, and supports both the center conductor and shield of the BNC interface.
Features:
- Simultaneously switches one RJ45 channel and one BNC channel locally via a knob located on the front panel.
- RJ45 channel tested for Cat5 compliance.
- Leads switched: All (8) RJ45 pins, plus BNC center conductor and shield.
- All ports located on the rear panel: (3) RJ45 female and (3) BNC female.
- Packaged in a rugged aluminum enclosure for EMI/RFI protection.
- Chassis size approximately 5.25" W x 2.0 H x 7.25" D.
- Switching is manually operated. Requires no power.
- Custom length cables are available.
Specifications:
Port Connectors:
(3) RJ45 (F), Category 5 connectors on rear panel
(3) BNC (F) connectors on rear panel.
Controls:
(1) Rotary Switch on front panel selects A or B.
Pins Switched:
RJ45: All 8 Pins Switched.
BNC: Center Conductor and Shield.
Power: No power required.
Enclosure: Shielded Aluminum Enclosure.
Dimensions: 5.25"W x 7.25" D x 2.0" H.
Weight: Approximately 2.5 lbs
