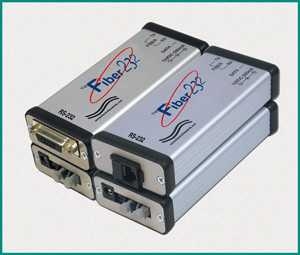

Models 4137EU & 4139EU HP Fiber/RS232 Converters with European 2-Pin Power Supply
- Allow Connection of HP Fiber Optic Linked Terminals to RS232 Port of Controller
Models 4137EU & 4139EU Application
The HP Fiber/RS232 Converters are used to connect fiber optic linked terminals to a controller having an RS232 interface port. While RS232 is a versatile communication standard, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields. Additionally, the ports of connected terminals are protected from damage by potential differences (ground variations) that often exist between them.
Fiber 232® Model 4137EU Features:
- Model 4137EU: RS232 connection via an RJ-45 connector.
- Model 4139EU: RS232 connection via a DB9 connector.
- HP Fiber to RS232 Converters convert RS-232 Serial Communication Interface to HP Versatile Link Plastic Core Cable.
- ESL's Fiber Optic Interface Converters provide full galvanic isolation (no metallic connection) between connected devices.
- Full duplex connection between two devices having RS-232 ports.
- Allows the interference-free fiber optical transfer of data to be utilized by the device having an RS-232 interface.
- Data transfer rate greater than 120 Kbps (enhanced RS-232).
- Fibre connections via two standard Versatile Link connectors.
- Maximum link distance: greater than 500 meters (1640 feet) with 200 mm Hard Clad Silicon Fiber Cable.
- The Model 4137EU and Model 4139EU media converters are ideal for casino data networks.
POWER: Provided with European 2-Pin external wall-mount power supply, Cat. No. 522876, 100-240 VAC, 50/60 Hz. GS, CE, RoHS certified.
Fiber 232® Specifications:
- Data Transfer Rate: Greater than 120 Kbps (enhanced RS-232).
- Fiber Transmission Distance: 75m (250 ft.) using TC 1000 W type plastic fiber cable.
- RS-232 Transmission Data: Greater than 15 m (50 ft.).
- Optical Fiber Connectors: HP/Agilent Versatile Link
- RS-232 Connector:
- DB-9 Female on Model 4139,
- RJ-45 Female on Model 4137.
- Optical Cable Type: 1mm plastic optical film
- Optical Wavelength: 660 nm (red).
- External Power Supply: 100-240 VAC, 50/60 Hz
- Dimensions: 5.5" x 2.25" x 1.0" (14.0 x 5.7 x 2.5 cm)
- Weight: 0.5 lb. (0.23 kg).
- Status Display: Red LED.
