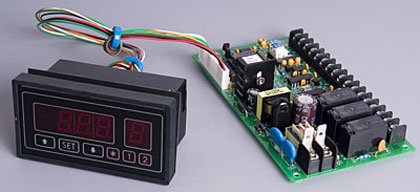

DigiTherm® Control Line
Microprocessor Based Indicating Temperature and Process Controls
Indicating microprocessor based 1/8 DIN and 1/16 DIN controls
Features:
- Three + LED digits
- Industry standard 1/8 DIN or 1/16 DIN size
- Large range of I/O options
- Single or multiple zones
- Digital I/O available
- Custom panel overlay
- RS232/485 communications
- Auxilary alarms and special functions
- Custom programming available
Dimensions:- 1/8 DIN, 3.78"w x 1.89"h x 5.6"d
- 1/16 DIN, 1.89"w x 1.89"h x 4"d
Input Options:- Single or dual zone
- Thermistor, RTD, Thermocouple
- Voltage, Current, resistance
- Contacts, frequency
- Humidity sensor
- pH and ORP electrodes
Output Options:- ON/OFF or PID
- Single or dual zone
- Solid state relay voltage drive
- Logic voltage
- Relay contacts
- Analog current/voltage
- Auxillary alarm contacts
Indication:- .56" LED digits
- 32 character 2 line LCD
- 32 character 2 line VFD
Interface Options:- RS232/RS485
- USB
- Ethernet
- We can match your protocol
- Custom Software available
