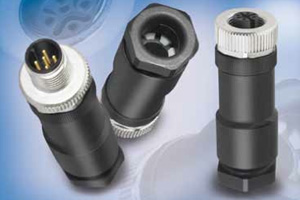

| | Apr 19, 2011 — Camarillo, CA - Binder-USA is now offering M12 and 7/8" field-attachable connectors with larger screw clamp terminations. This change will allow the connectors to accept wires up to 14 AWG. The ability to use a larger wire gauge make the connectors suitable for connecting power applications typically found in industrial environments.
The Series 713 M12 connectors with 4- and 5-pins can now be terminated with 16 AWG wires and a maximum cable diameter of 10 mm. After increasing the wire gauge it is possible for the connectors to conduct currents up to 8 A per contact. Both male and female versions are available in straight form and are intermateable with all 4- and 5-pin A-coded versions.
The Series 820 7/8" connectors with 5-pins can now be terminated with 14 AWG wires and a maximum cable diameter of 14 mm. By increasing the size of the cable clamps it is now possible for the connectors to withstand currents up to 12 A per contact. Male and female connectors with straight and angled forms are available with the larger screw terminations.
All Binder M12 and 7/8" connectors are IP67 rated when connected to their mating parts. Binder-USA offers mating cordsets, receptacles and field-attachable connectors for a complete connecting system.
For more information on Binder's connectors, visit www.binder-usa.com Or, contact Binder-USA, 3903 Calle Tecate, Camarillo, CA 93012, e-mail: sales@binder-usa.com, telephone: 1-805-437-9925, fax: 805-504-9656.
Binder-USA, LP is a subsidiary of Franz Binder GmbH & Co., a German-based designer and manufacturer of circular connectors and cordsets for use in industrial environments including factory automation, process control, and medical technology applications. | |
