Eriez® Offers Economically-Priced, Quick Ship Metal Detector Conveyor Systems in a Variety of Belt Widths and Aperture Heights

Press Release:

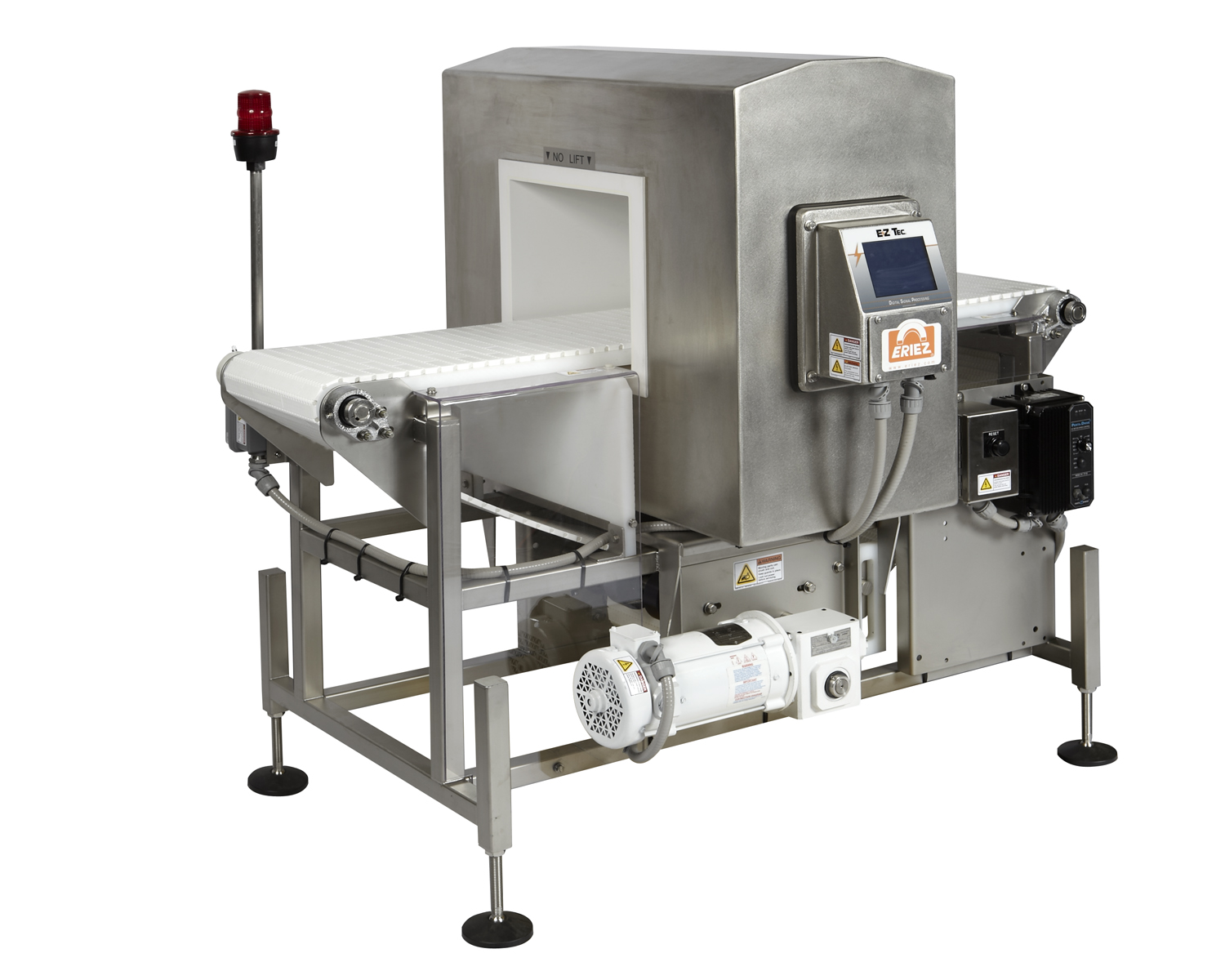

  Jun 12, 2013 — Erie, PA — E-Z Tec® DSP Metal Detector Conveyor Systems from Eriez®, designed and manufactured in the United States, offer unmatched protection against ferrous and nonferrous metal contamination. These state-of-the-art units are competitively priced and available for quick shipment, typically 1-2 weeks after receipt of order.

Each system comes with variable speed control, food grade polypropylene (plastic chain) belt, stop belt reject and combination beacon and horn. These E-Z Tec DSP Metal Detector Conveyor Systems are available in three belt widths and various aperture heights, depending upon the model:

• 12-inch wide x 60-inch long belt with aperture heights of 6, 8, 10, 12 or 14 inches x 14 inches wide
• 18-inch wide x 72-inch long belt with aperture heights of 8, 10, 12, 14, 16 ,18 or 20 inches x 20 inches wide
• 24-inch wide x 84-inch long belt with aperture heights of 8, 10, 12, 14, 16, 18 or 20 inches x 26 inches wide

Each system also includes a continuously welded series 304 stainless steel frame, wash-down drive and UHMW slider bed. The conveyor electronics are housed within a NEMA 4X enclosure with start/stop switch for both the metal detector and conveyor. The entire system is supported by adjustable articulated foot pads.

Other standard features include sophisticated electronics using high frequency Digital Signal Processing (DSP), menu-driven control functions with easy to see and use back-lit touch screen interface, sensitivity adjustment to maximize detection, automatic product set-up with self-checking capabilities and calibration verification for simple start-up and operation.

More information on the E-Z Tec DSP Metal Detector Conveyor Systems can be found at: From this page, visitors can download the E-Z Tec Metal Detectors brochure and obtain information about the Eriez Metal Detector Conveyor Quick Ship Program.

Eriez is recognized as world authority in separation technologies. The company’s magnetic lift and separation, metal detection, x-ray, materials feeding, screening, conveying and controlling equipment have application in the process, metalworking, packaging, plastics, rubber, recycling, mining, aggregate and textile industries. Eriez manufactures and markets these products through 12 international facilities located on six continents. For more information, call toll-free (888) 300-ERIEZ (3743) within the U.S. and Canada. For online users, visit or send email to Eriez World Headquarters is located at 2200 Asbury Road, Erie, PA 16506.
