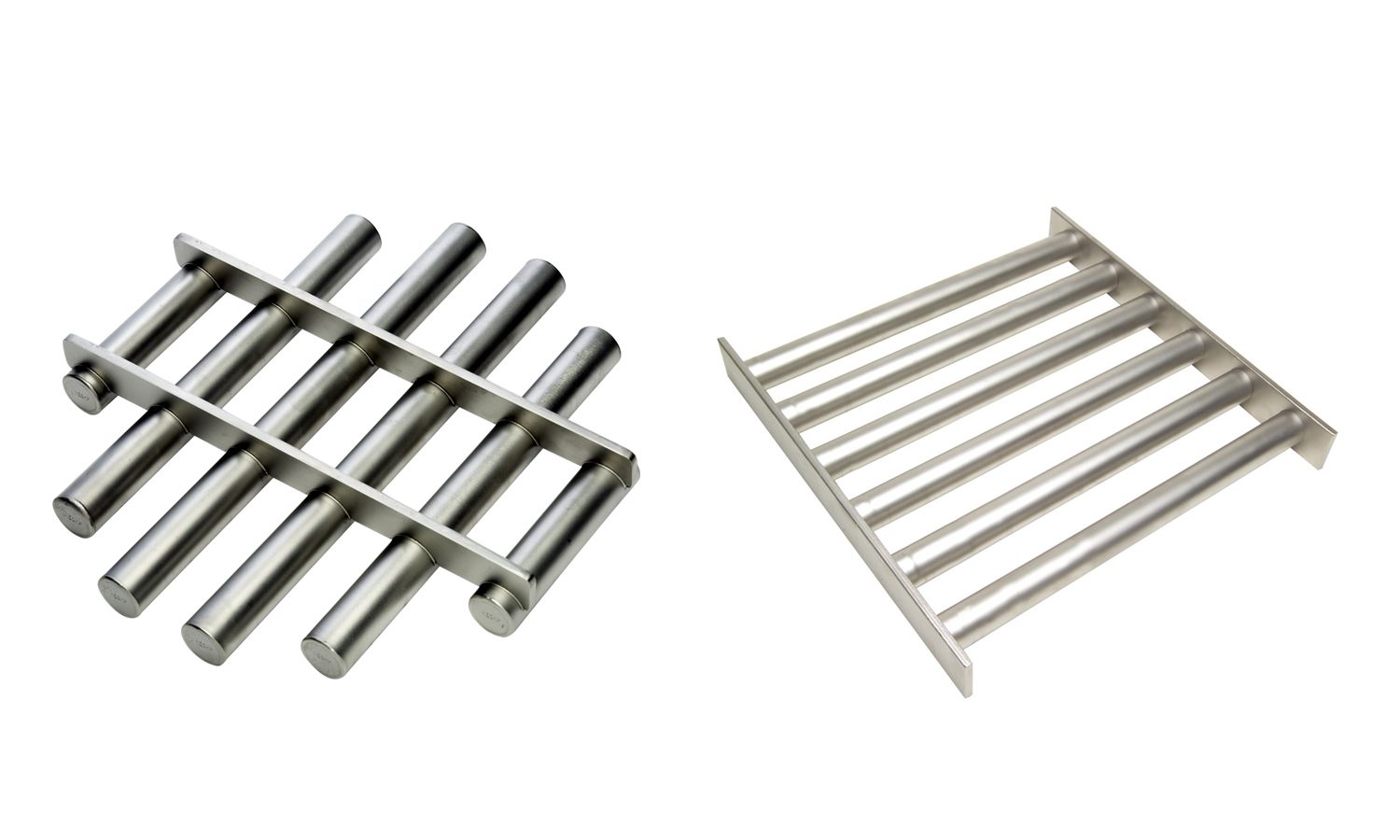

Eriez® ProGrade® Square, Rectangular and Round Grates Protect Against Ferrous Contamination

Press Release:
  Nov 13, 2012 — Erie, PA --- Eriez® offers economical ProGrade® Square, Rectangular and Round Grates to remove ferrous contamination in hoppers, chutes, floor openings and other areas where free flowing materials are present. These magnets are a perfect fit for square, round and odd-shaped processing lines or hoppers.

In operation, the product will flow between the one-inch diameter tube magnets that are spaced on standard two-inch tube centers and held rigidly in place. These all-stainless steel units are installed by simply placing the grate in the hopper with the ends of the magnetic tubes or tie bars resting against the sides.

Eriez ProGrade Square, Rectangular and Round Grates are available in Ceramic, Rare Earth and Xtreme® Rare Earth magnet strengths, enabling professionals in diverse industries to choose the ideal level of protection for their specific application. Ceramic powered separators are suitable for removing medium to large tramp metal such as bolts, nuts and hand tools. Rare Earth powered separators are designed to remove small ferrous contaminants such as pins, staples and clips. Separators powered by Xtreme Rare Earth magnet material are best at removing weakly magnetic fine ferrous contamination.

These powerful magnets feature a neat, uniform glass bead surface finish. Xtreme Rare Earth ProGrade Square, Rectangular and Round Grate models feature sanitary construction. Rare Earth and Xtreme Rare Earth designs are suitable for temperatures up to 150 F.

Most items in Eriez’ high quality, low cost ProGrade series of standard magnetic separators are in stock and available for immediate shipment. For more information on Eriez ProGrade Square, Rectangular and Round Grate Magnets, including pricing, visit

Eriez is recognized as world authority in advanced technology for magnetic, vibratory and inspection applications. The company’s magnetic lift and separation, metal detection, x-ray, materials feeding, screening, conveying and controlling equipment have application in the process, metalworking, packaging, plastics, rubber, recycling, mining, aggregate and textile industries. Eriez manufactures and markets these products through 12 international facilities located on six continents. For more information, call toll-free (888) 300-ERIEZ (3743) within the U.S. and Canada. For online users, visit or send email to Eriez World Headquarters is located at 2200 Asbury Road, Erie, PA 16506.

For more information:
Tags: eriez, prograde square grates, prograde rectangular grates, prograde round grates, removes ferrous contaminants, magnetic separators
Categorized Under: Grate Magnets
