High Speed Automated Microscopy XY Stages

Press Release:

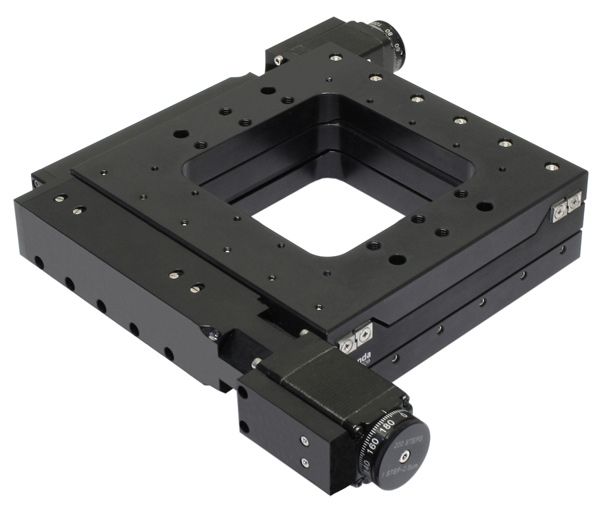

  Feb 12, 2012 — IntelLiDrives (www.intellidrives.com) newly released Open Frame XY stages designed for the replacements of the manual stages found on the microscopes to provide motorized XY positioning of the microscopy samples.

These motorized stages enable scanning speeds at 25 mm/s. The linear encoder feedback ensures correct positioning with a resolution of 0.1 µm and repeatability of 0.25 µm, while motion controller allows fast, smooth positioning without vibration or shock to delicate biological samples under investigation.

Characterized by high-speed scanning capabilities and high positional accuracy, this stage is ideal for automated positioning of a wide range of specimens and samples in many types of microscopy and imaging techniques and applications. Very precise manual fine positioning is easily achieved through the combination of a computerized control system and associated joystick.

Features:

Low Profile: 45 mm Tall
Compact Footprint: 188 x 188 mm
Stepper or Brushless Servo Motor
Optional Linear Optical Encoders
High Repeatability (0.25 µm)
Large Center Opening

For additional information, visit IntelLiDrives web site: http://www.intellidrives.com/

For more information: http://www.intellidrives.com/
 Additional link: http://www.intellidrives.com/systems-c-18.html


Categorized Under: Stages
